GNSS Guidance System AGN АТ5 RTK

A universal deviсe, in its basic configuration it works as a simple GNSS Guidance System. However, the primary purpose of the device is operation as a part of the control and monitoring system in the process of applying (spraying or spreading) of various chemicals during field works. The control and monitoring system allows to keep predetermined dose rate when applying fertilizers, control the entrance into applied area of the field and turn on/off sections (and/or nozzles) automatically.

For field operations which require higher accuracy of positioning, the device supports flexible connectivity with RTK Systems. Embedded 3G modem allows receiving RТK correction data via the Internet connection (NTRIP client) with the subsequent transmitting of corrections to external GNSS receiver (Rover).
3G modem also allows the device to send report data about the system operation to external systems of online monitoring.

Designed for: Navigating of an agricultural machinery
Spraying/spreading dose rate control*
Spraying/spreading process remote monitoring

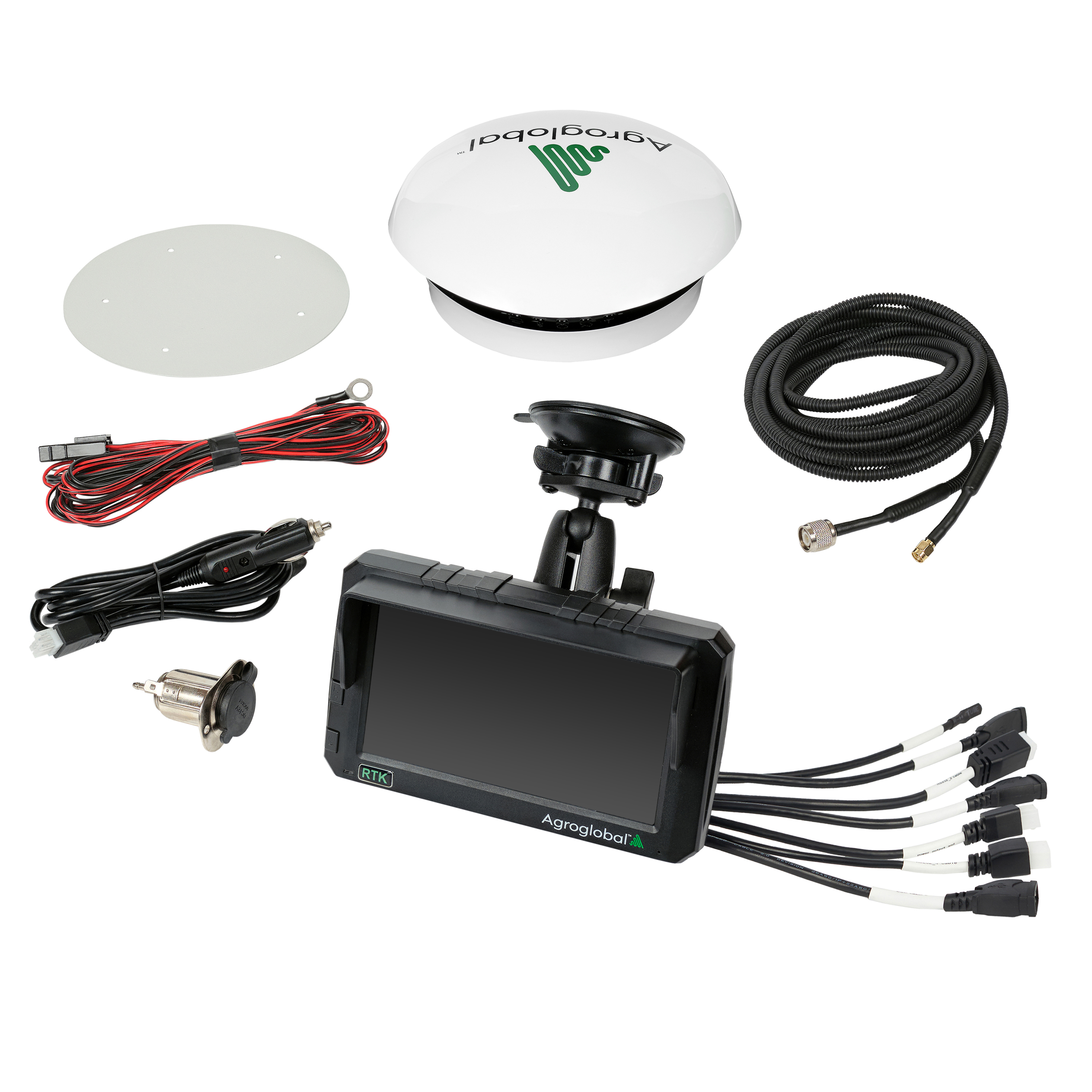

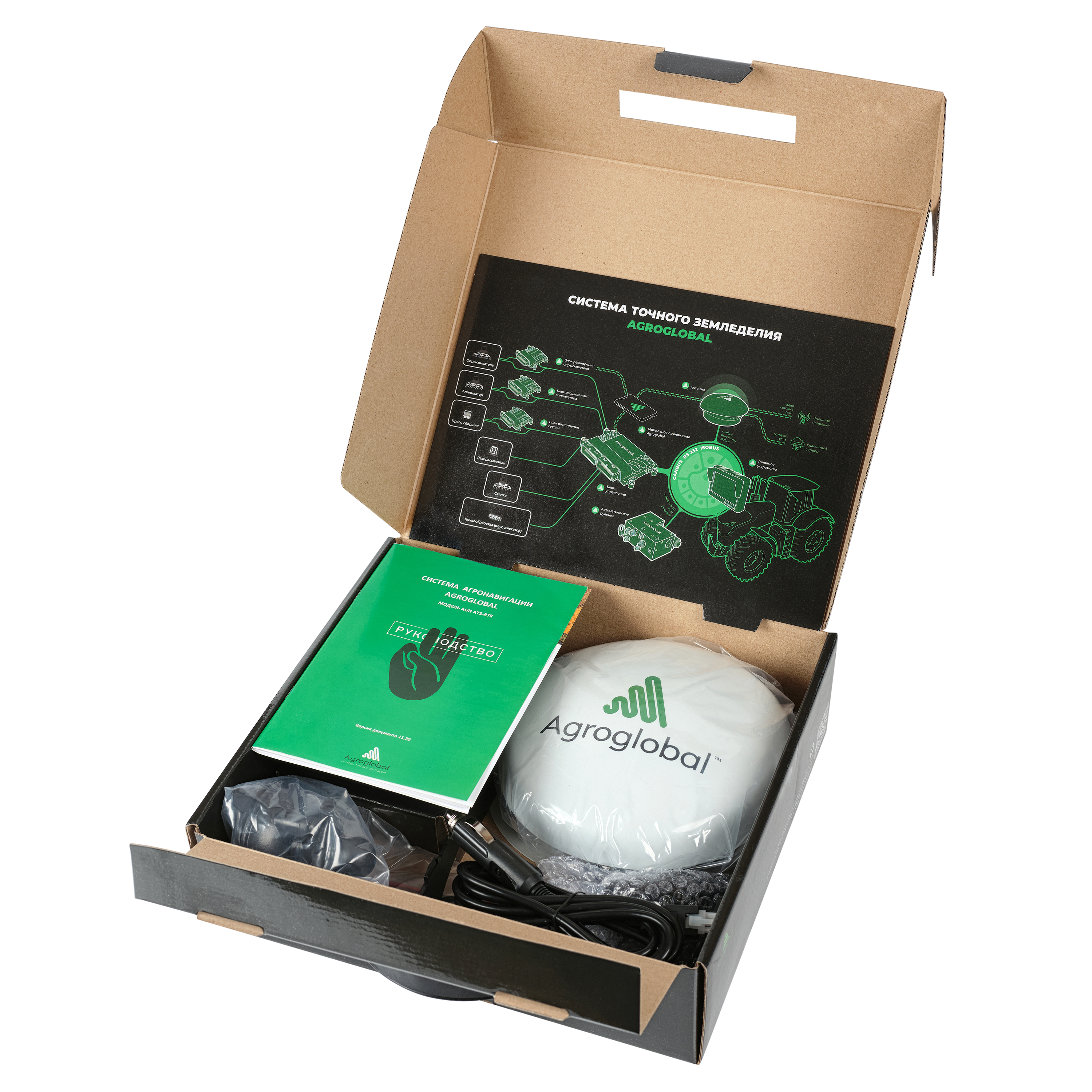

Complete set

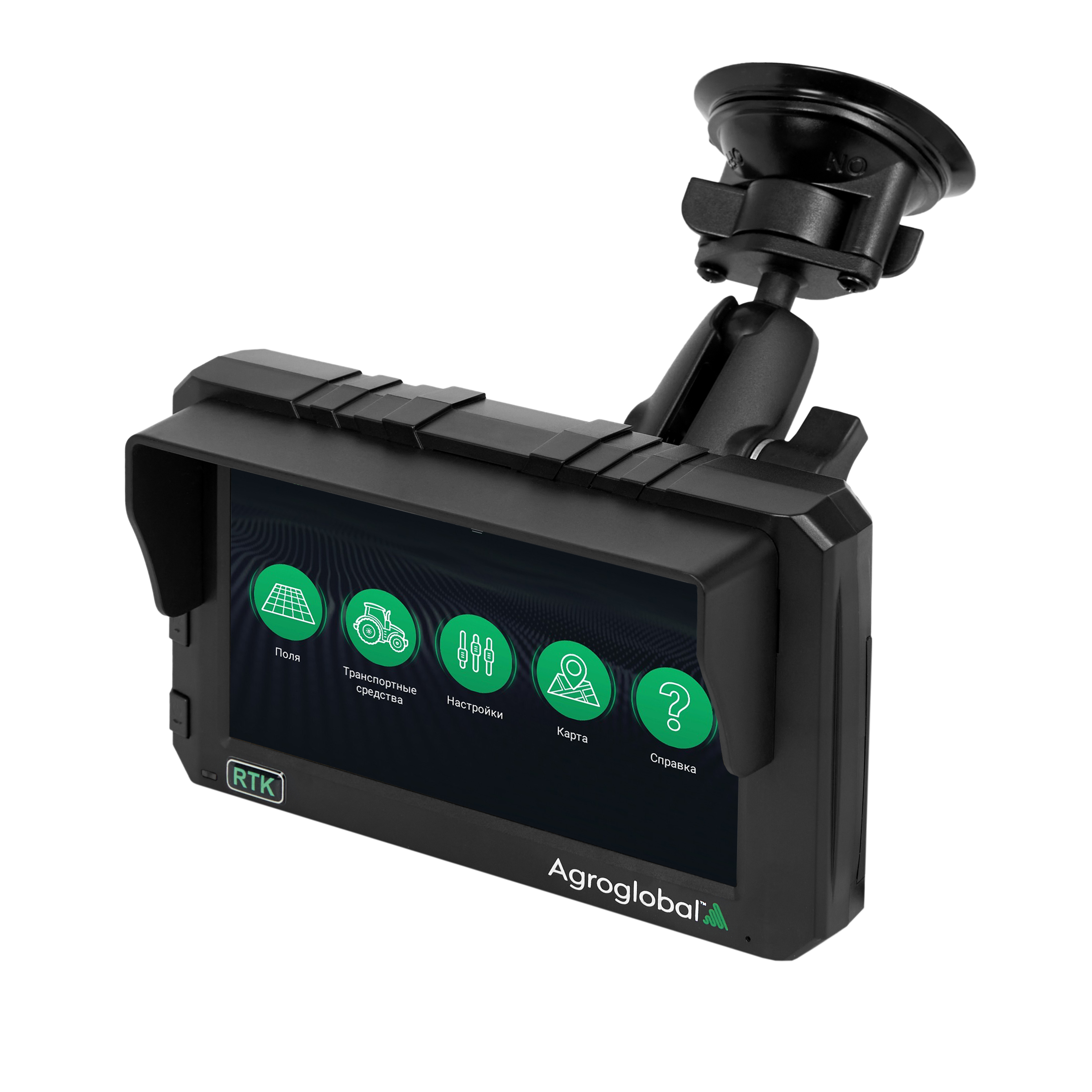

Head unit Agroglobal AGN AT5 - 1 pc

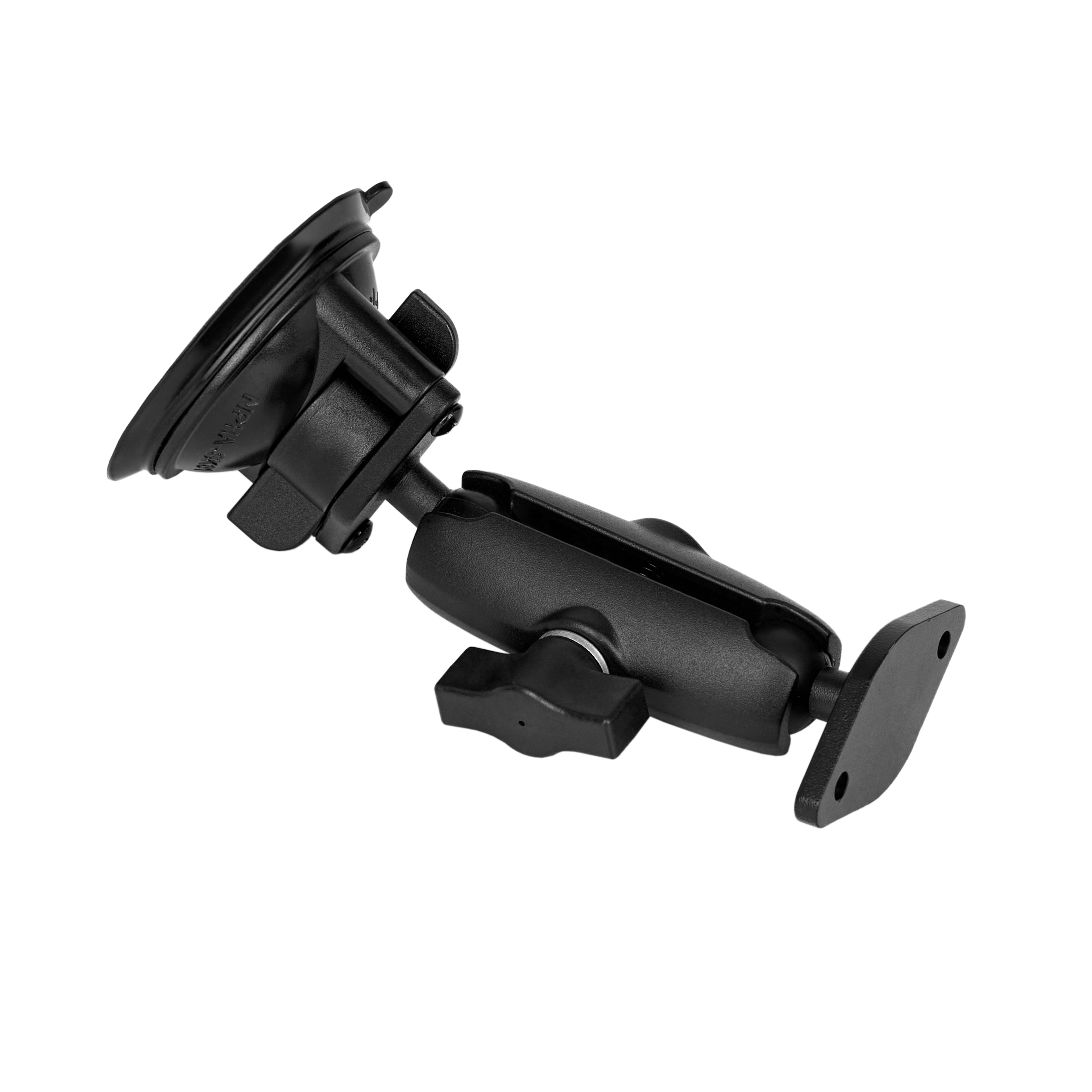

Holder - 1 pc

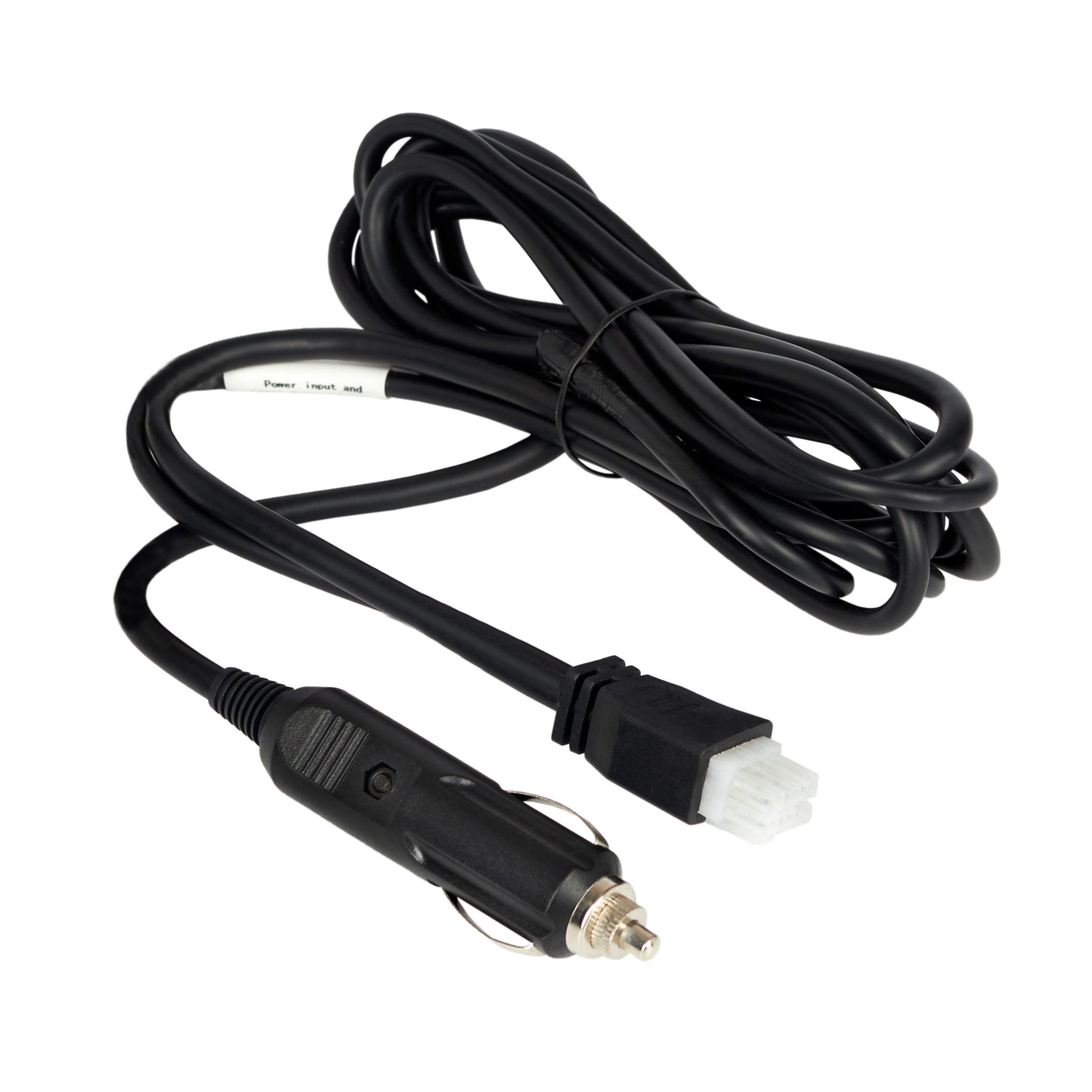

Power adaptor - 1 pc

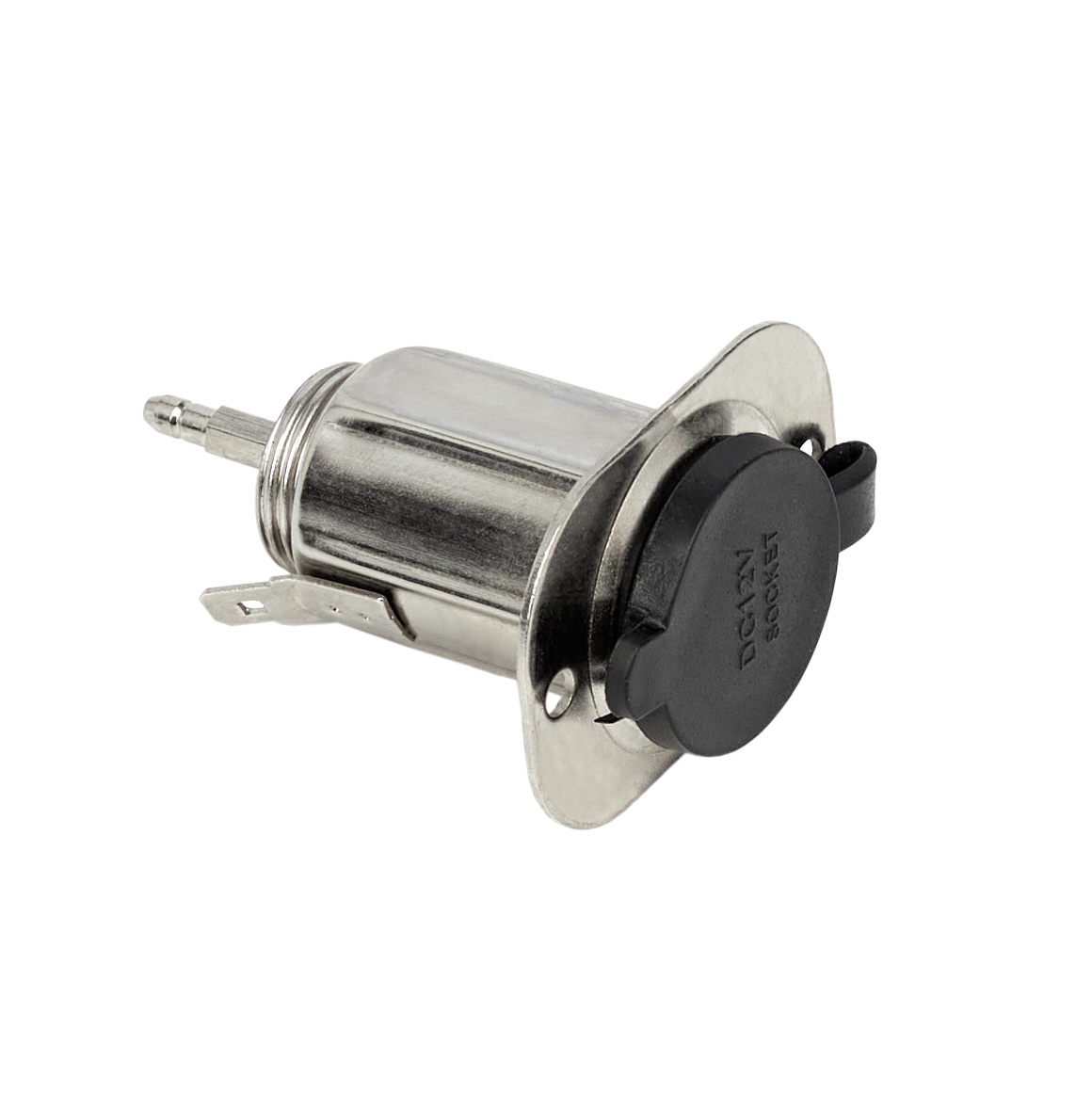

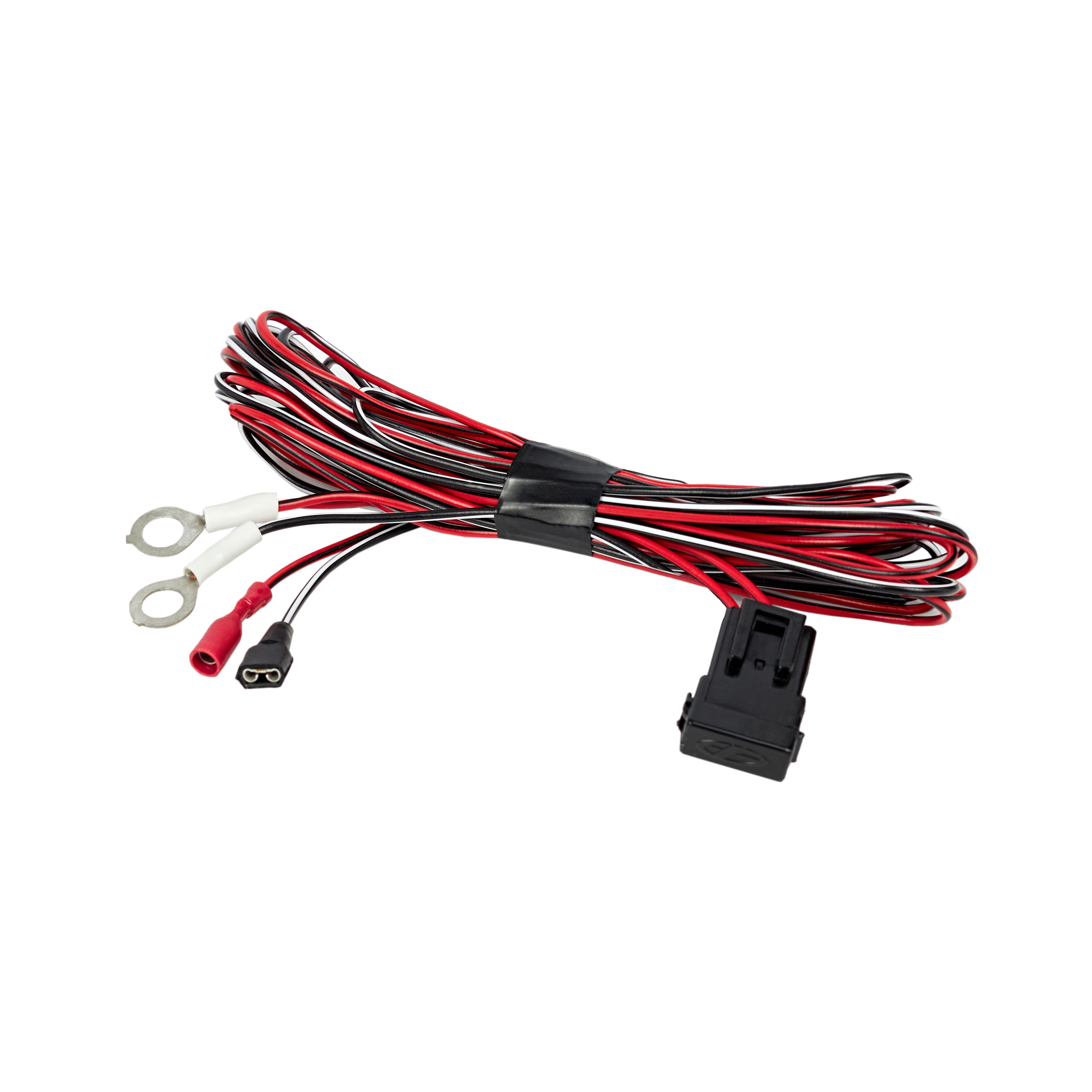

Cigarette plug with wires and fuse (optionally) - 1 pc

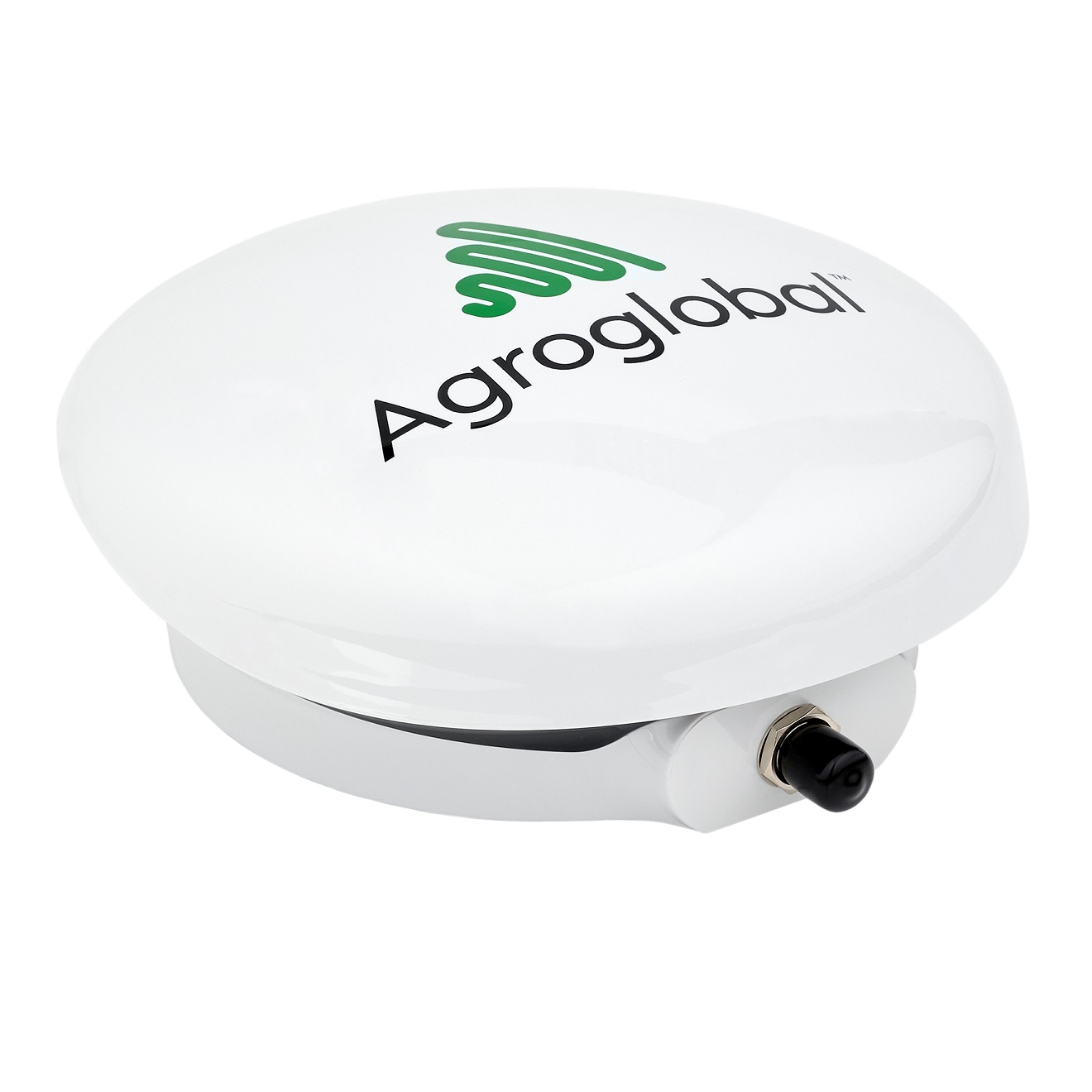

Enhanced antenna GNSS AGN 3.3 - 1 pc

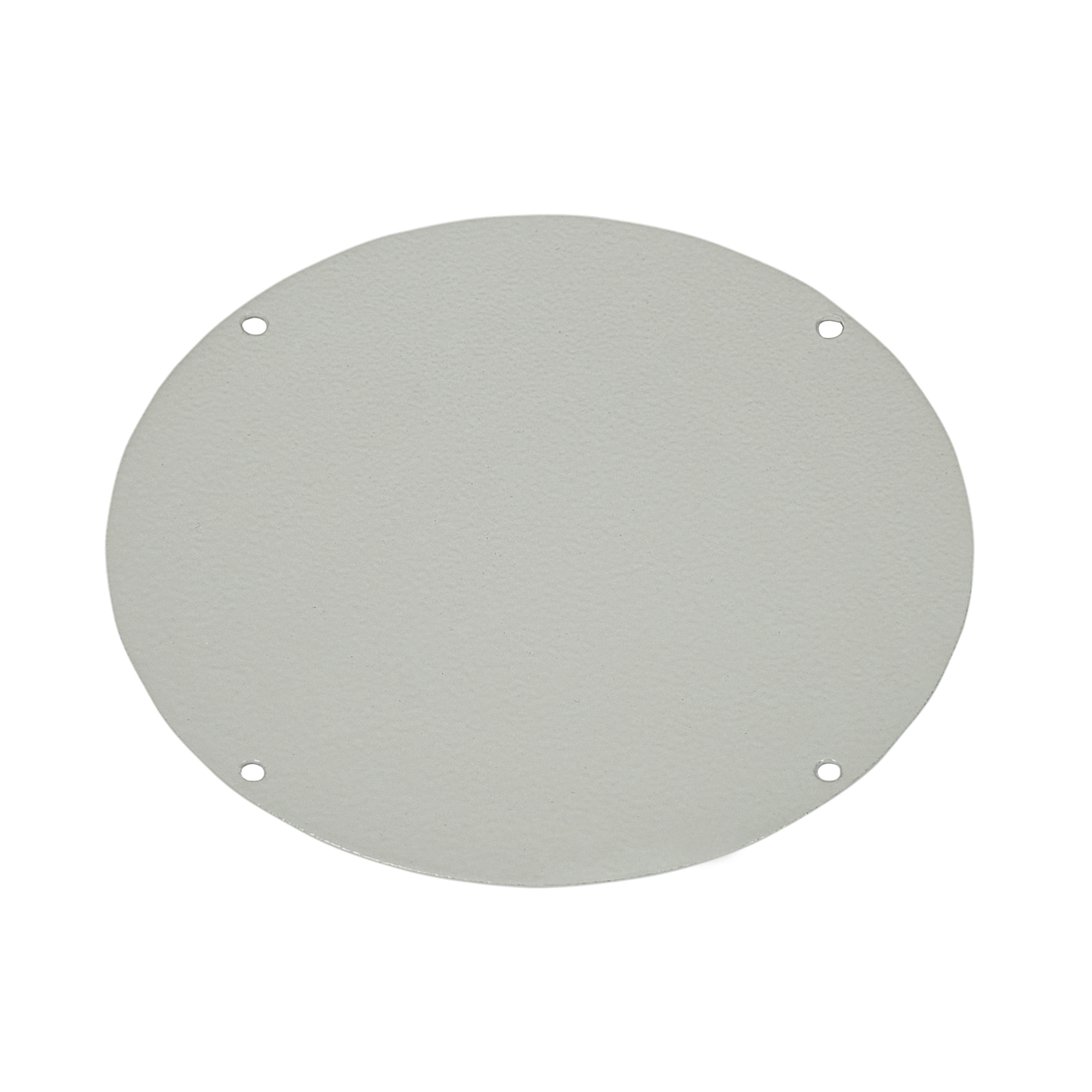

Metal plate for antenna - 1 pc

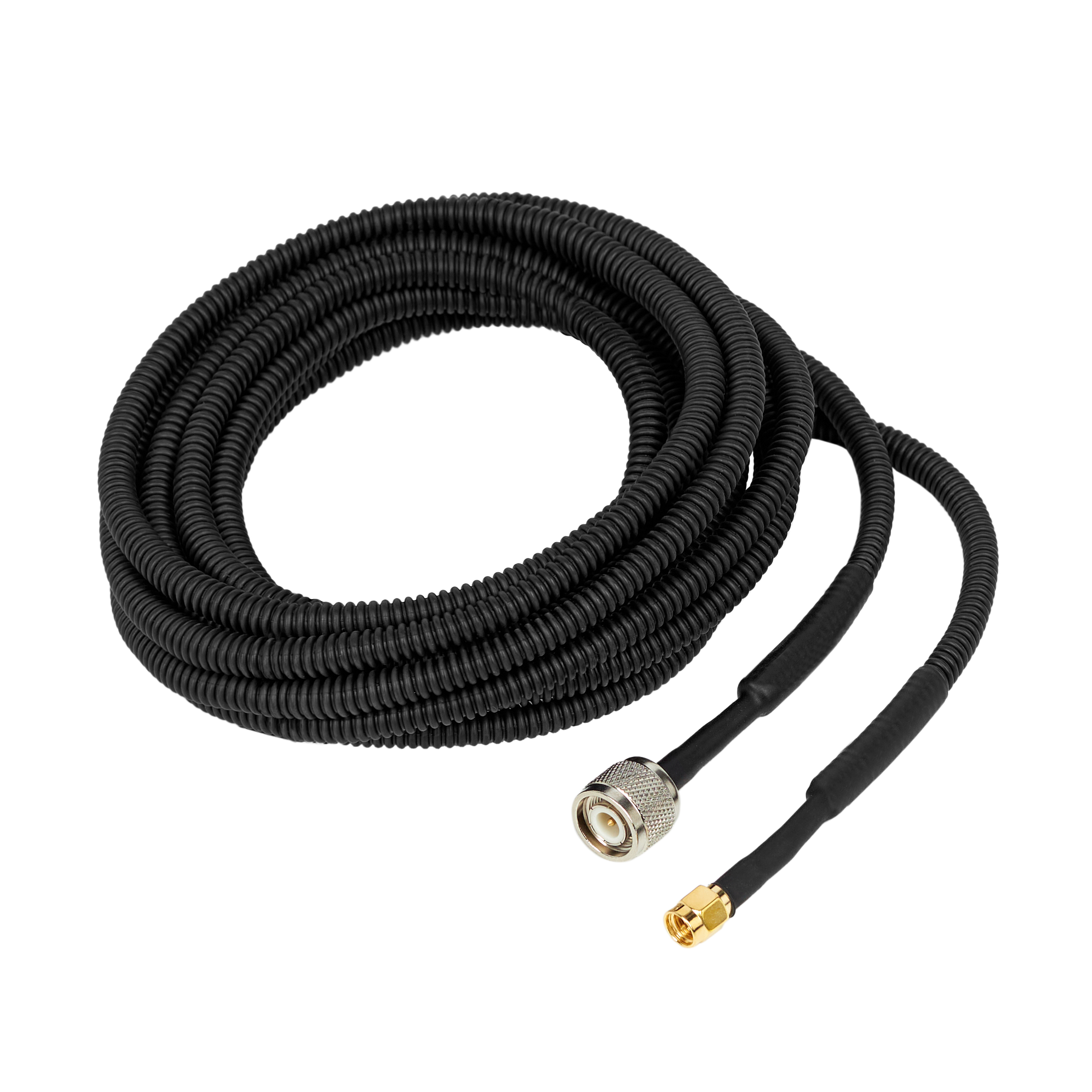

Antenna cable protected 4 m - 1 pc
User's manual

Display

Pass-to-pass accuracy

5-20 cm without RTK correction
2-4 см with RTK correction **

Movement patterns

Straight line AB / Perimeter / Free form /
Area measurement / Identical curves

Work modes

Day/night
Air mode
Positioning on OSM maps

Reports

SD-card (kml-file), remote server (Wialon)

Monitoring function

Wialon IPS

Spraying/spreading
control*

Auto/manual section control
Dose rate control


* using control and monitoring unit AGN CMU-01M,
optionally

** RTK corrections is extra paid service
