NOZZLES HIGHLIGHT ELEMENT AGN 1.6LED 12V

NOZZLES HIGHLIGHT ELEMENT AGN 1.6LED 12V

NOZZLES HIGHLIGHT ELEMENT AGN 1.6LED 12V

Where to buy

NOZZLES HIGHLIGHT ELEMENT AGN 1.6LED 12V

Where to buy

Description

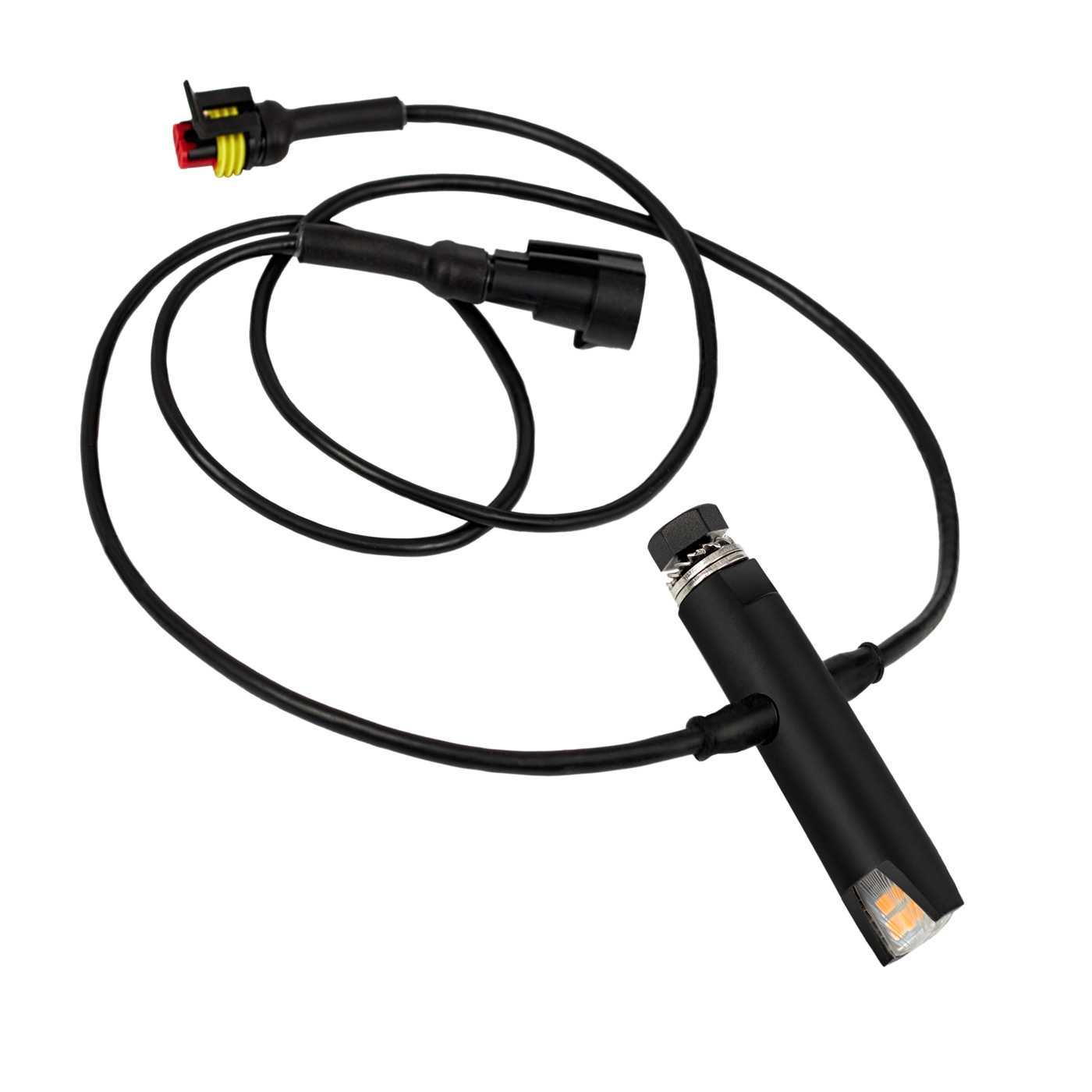

The highlight element is designed for visual control of spraying process at a night-time. It is placed between pair of nozzles and highlights a spray cone, allowing to estimate the quality and efficiency of nozzles. It can be used together with sprayer control unit AGN CMU-01M or independently.
Refueling by water from an open reservoir can frequently result in irregular work or complete blocking of nozzles, even if several stages of filtration are applied. Visual control for operation is necessary!
The highlight elements are installed on a boom of any width, you just need to connect the required number of elements in one line. This ensures versatility and applicability for any sprayer.

Specifications

Directional diagram

2х120° («Butterfly»)

Power supply

9…14,5 VDC

Consumption

1,2 W

Luminous flux

210 lm

Colour temperature

3000°К

Dimensions

65х18 mm

Fixing

bolt М8

Socket

AMP, SUPERSEAL 1,5

Body

glass-filled polyamide (chemical resistant)

Functions

Highlight of each spray cone on the sprayer boom.

Accessories

NOZZLES HIGHLIGHT ELEMENT AGN 1.6LED 12V

NOZZLES HIGHLIGHT ELEMENT AGN 1.6LED 12V

The highlight element is designed for visual control of spraying process at a night-time. It is placed between pair of nozzles and highlights a spray cone, allowing to estimate the quality and efficiency of nozzles. It can be used together with sprayer control unit AGN CMU-01M or independently.

Description

Specifications

Functions

Accessories

Where to buy
