GNSS Guidance System AGROGLOBAL AGN8000

AGN8000 is entry-level GNSS Guidance System. It can be used
for operations which don’t require high accuracy of a vehicle
positioning. As a rule, such works include applying liquid and hard
chemicals (various fertilizers, pesticides, herbicides, substances
against pests, etc.), sowing works using spreaders.
For carrying out of works demanding high accuracy, the device is
recommended to be used together with the external high-precision
GNSS receiver. AGN8000 supports external GNSS receiver via
RS232 interface (NMEA 0183).

Main task: Guidance of an agricultural machinery
according to one of the patterns (modes)

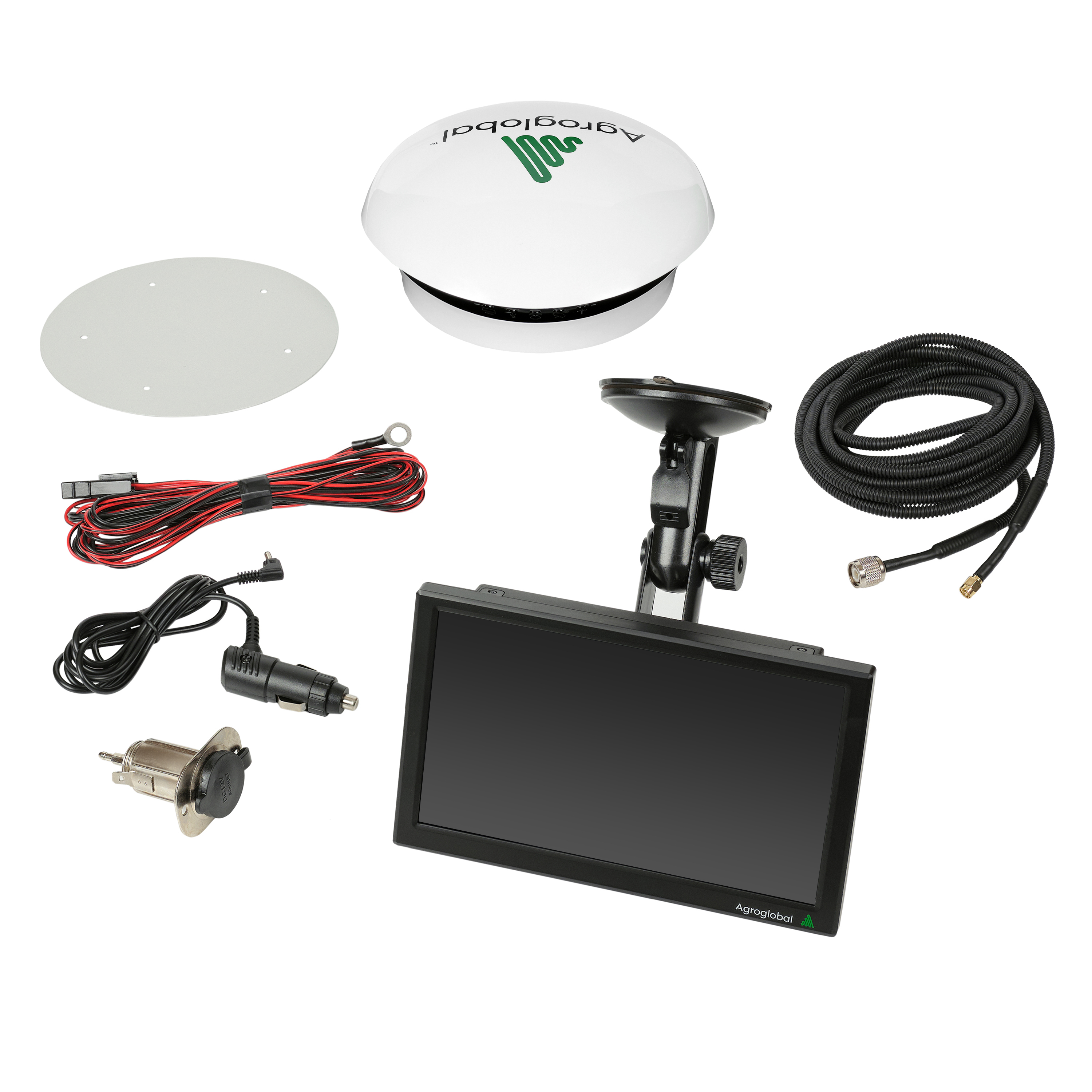

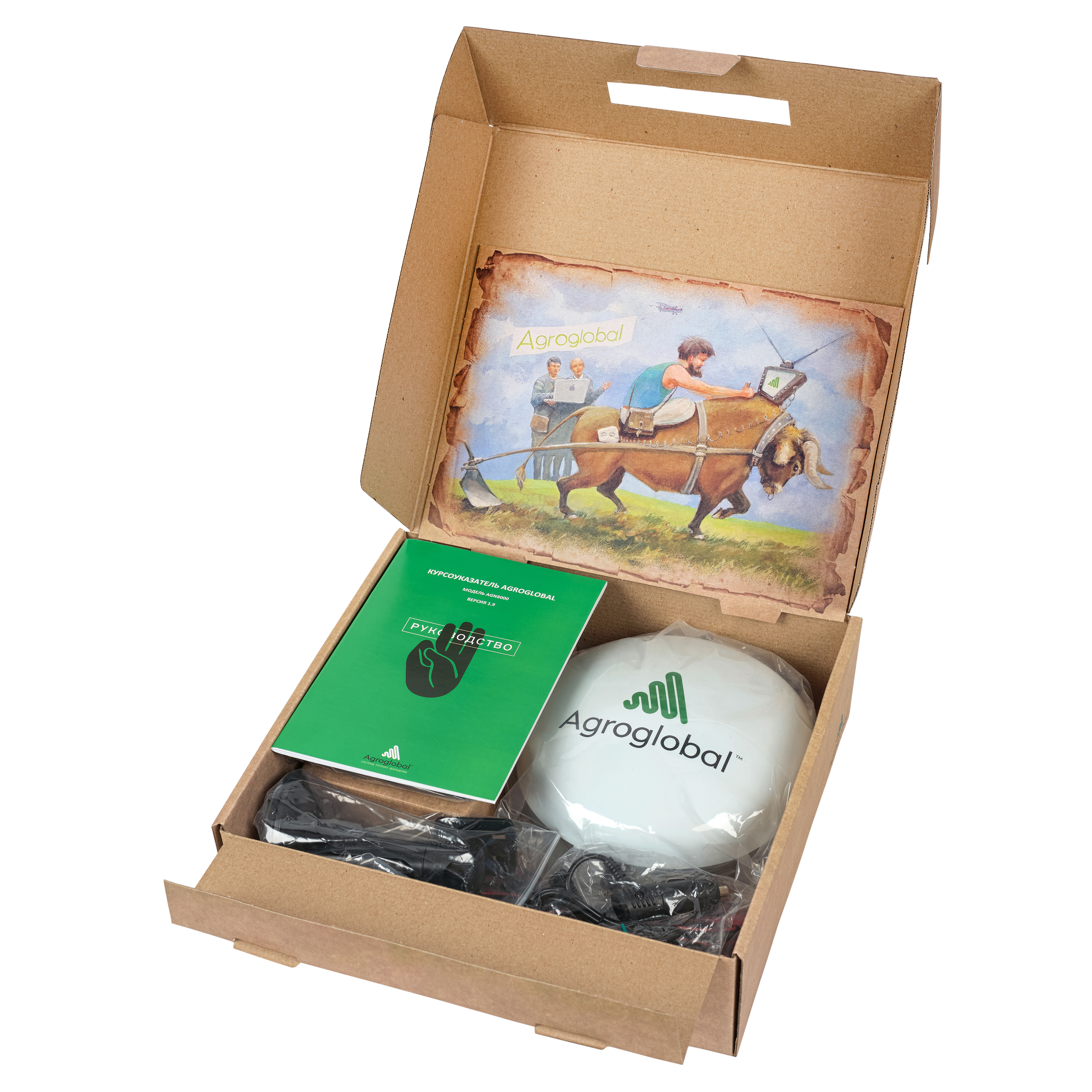

COMPLETE SET

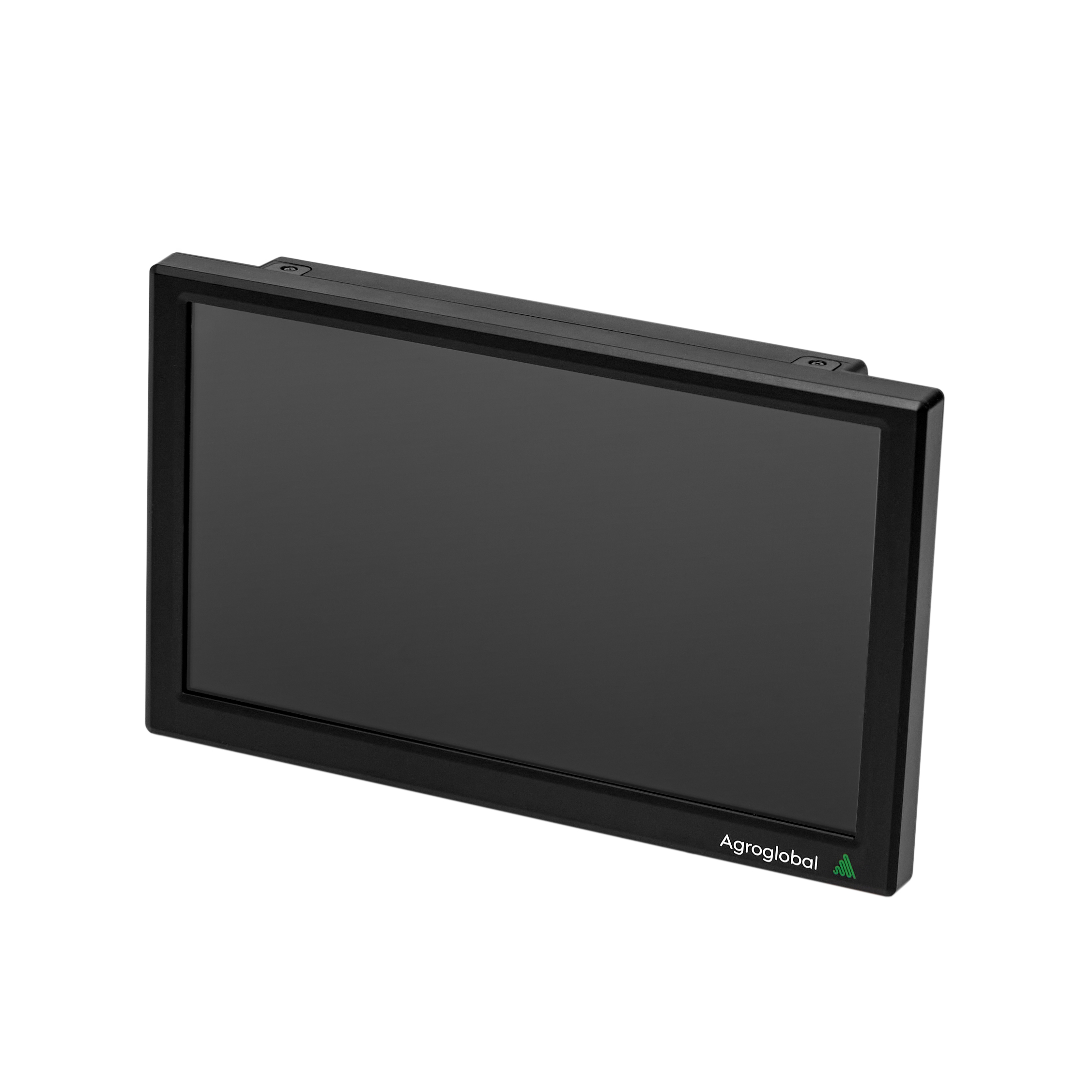

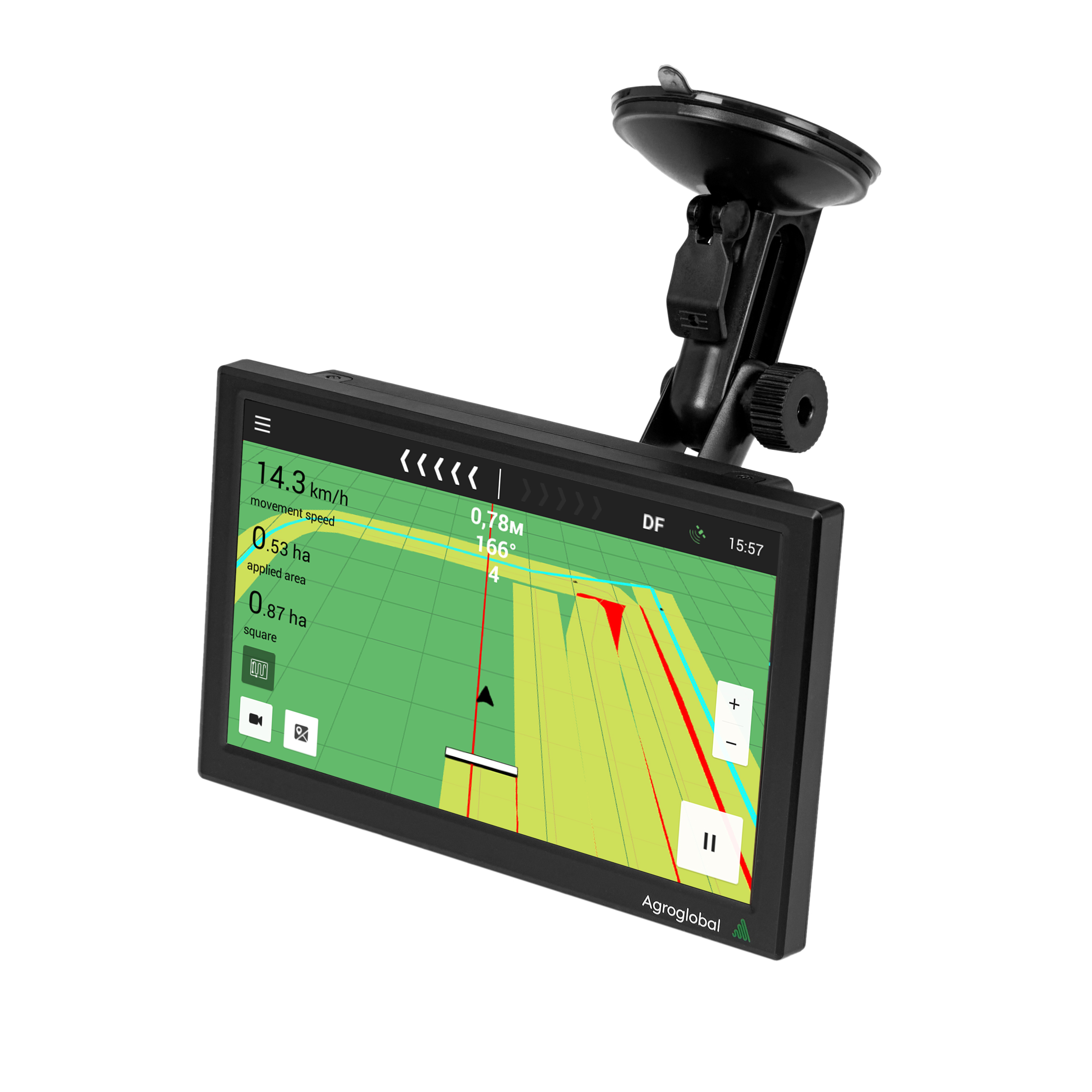

Navigator Agroglobal AGN8000 (with dual-frequency GNSS receiver) - 1 pc

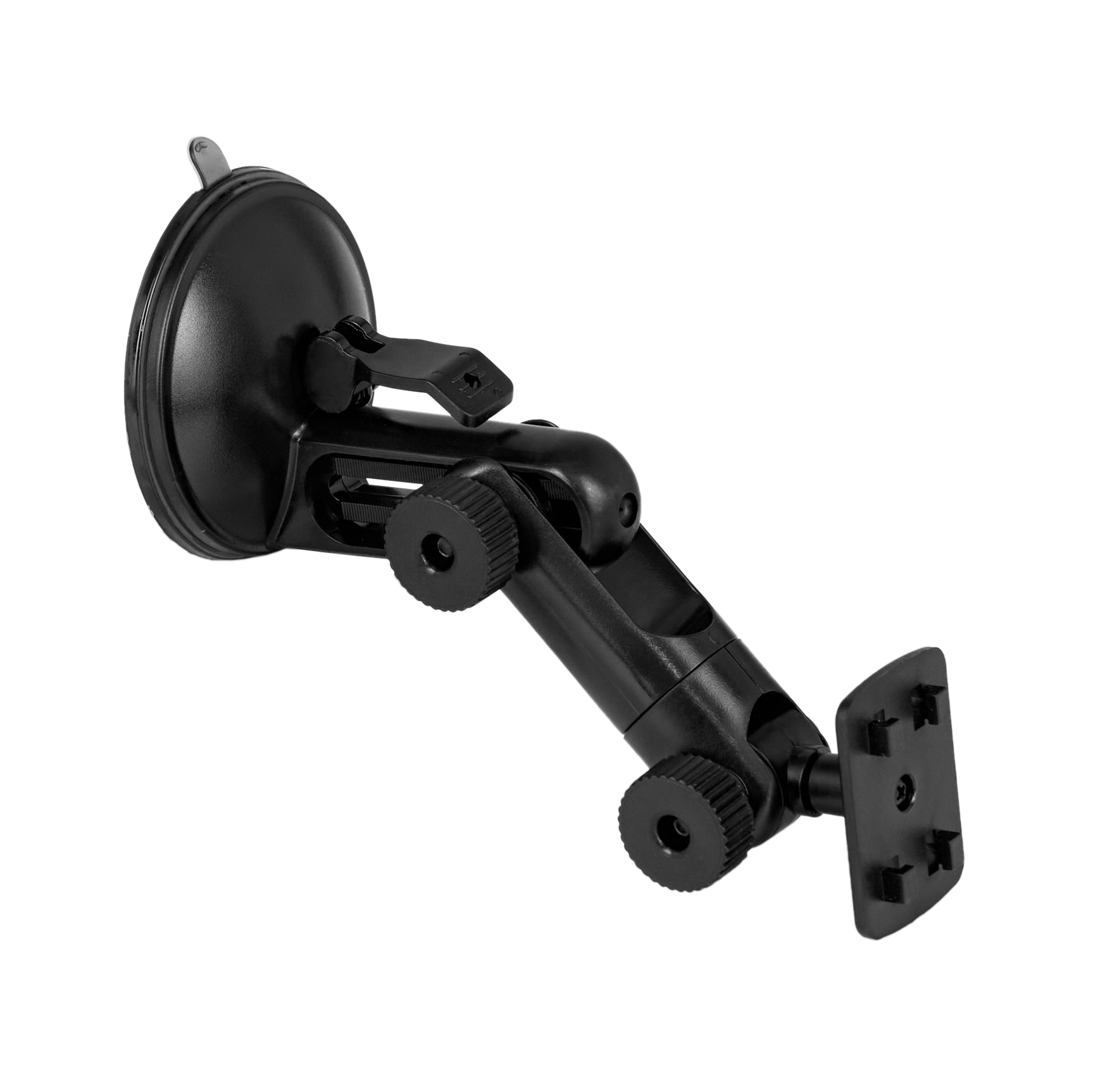

Holder - 1 pc
 - 1 pc

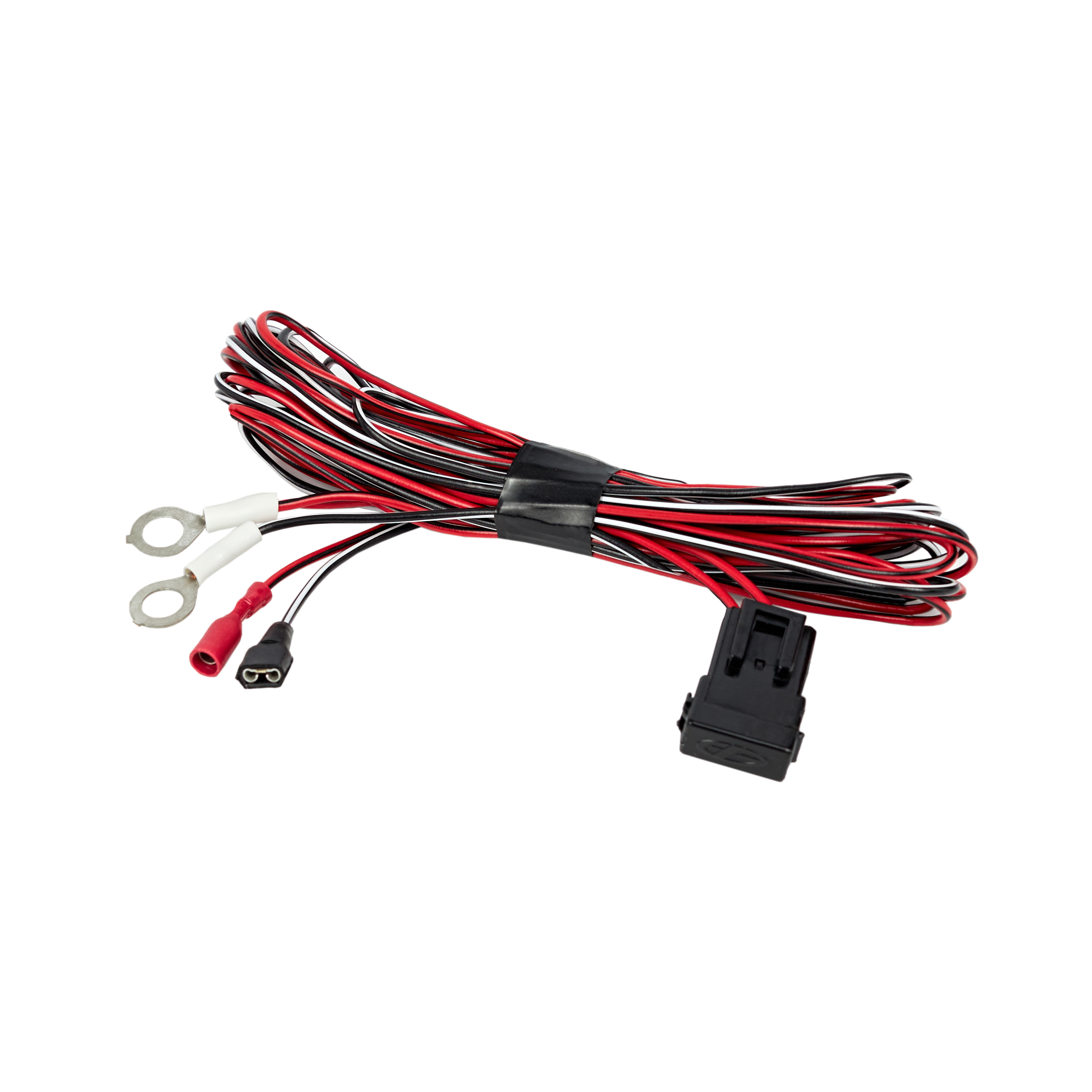

Power adaptor - 1 pc

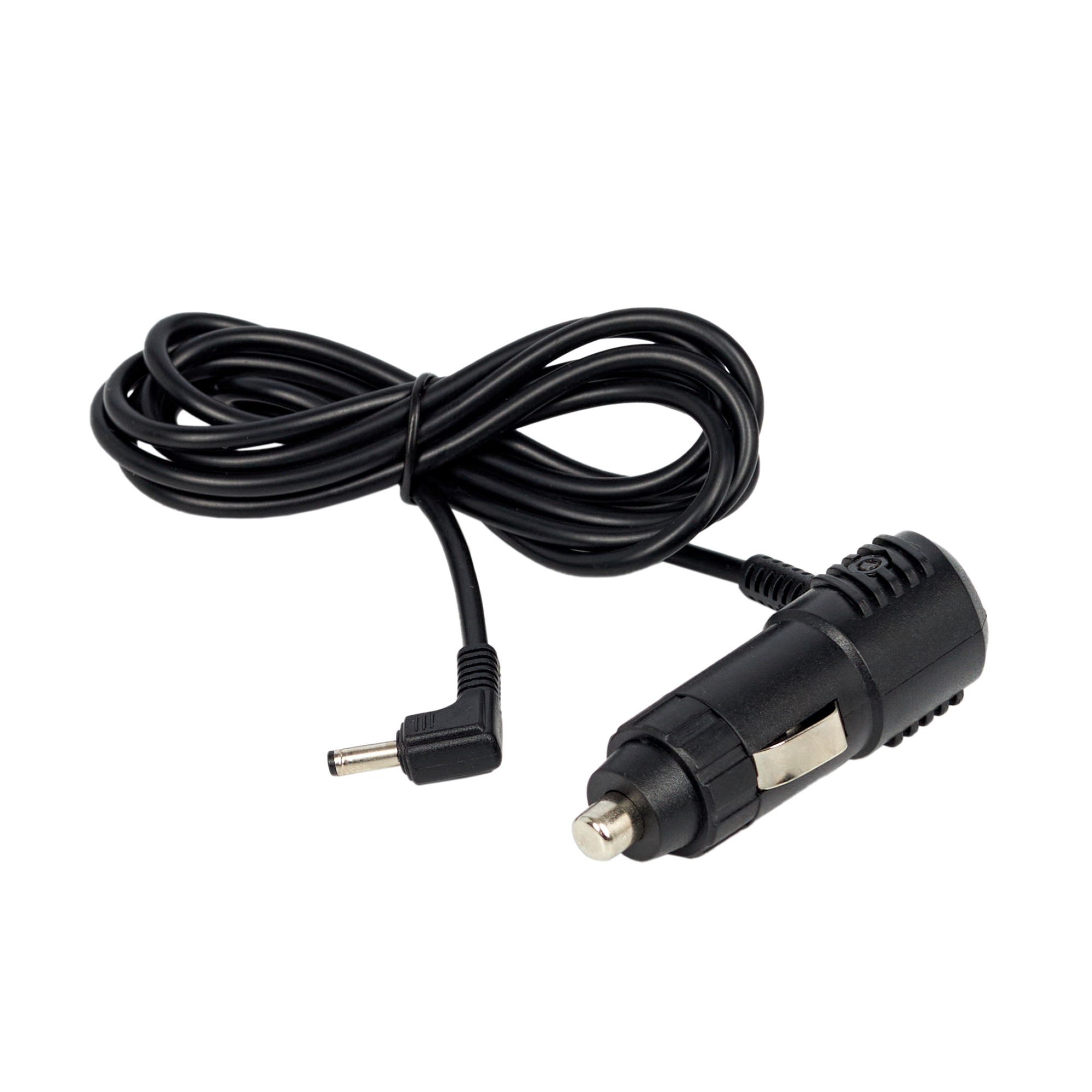

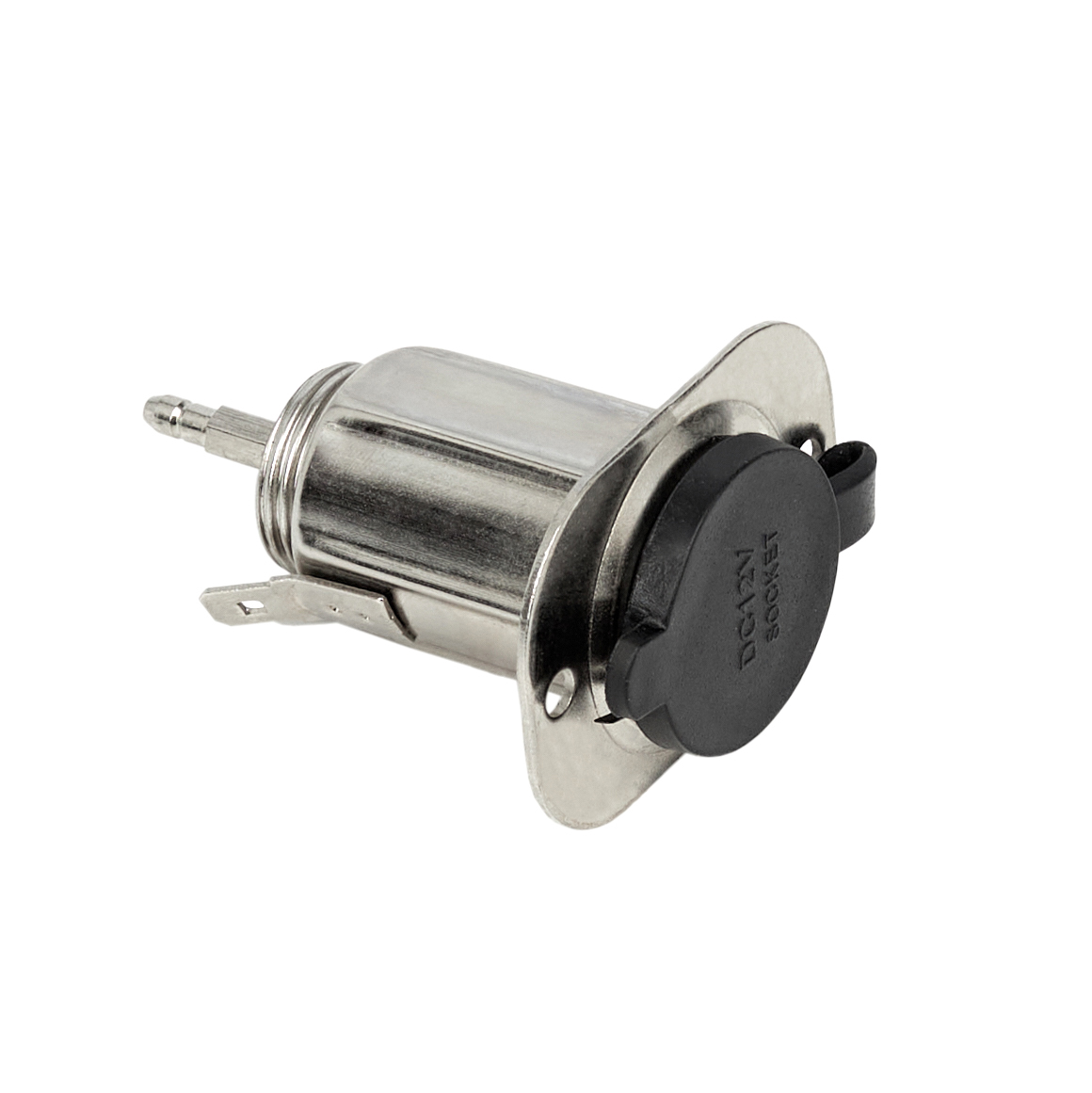

Cigarette plug with wires and fuse - 1 pc

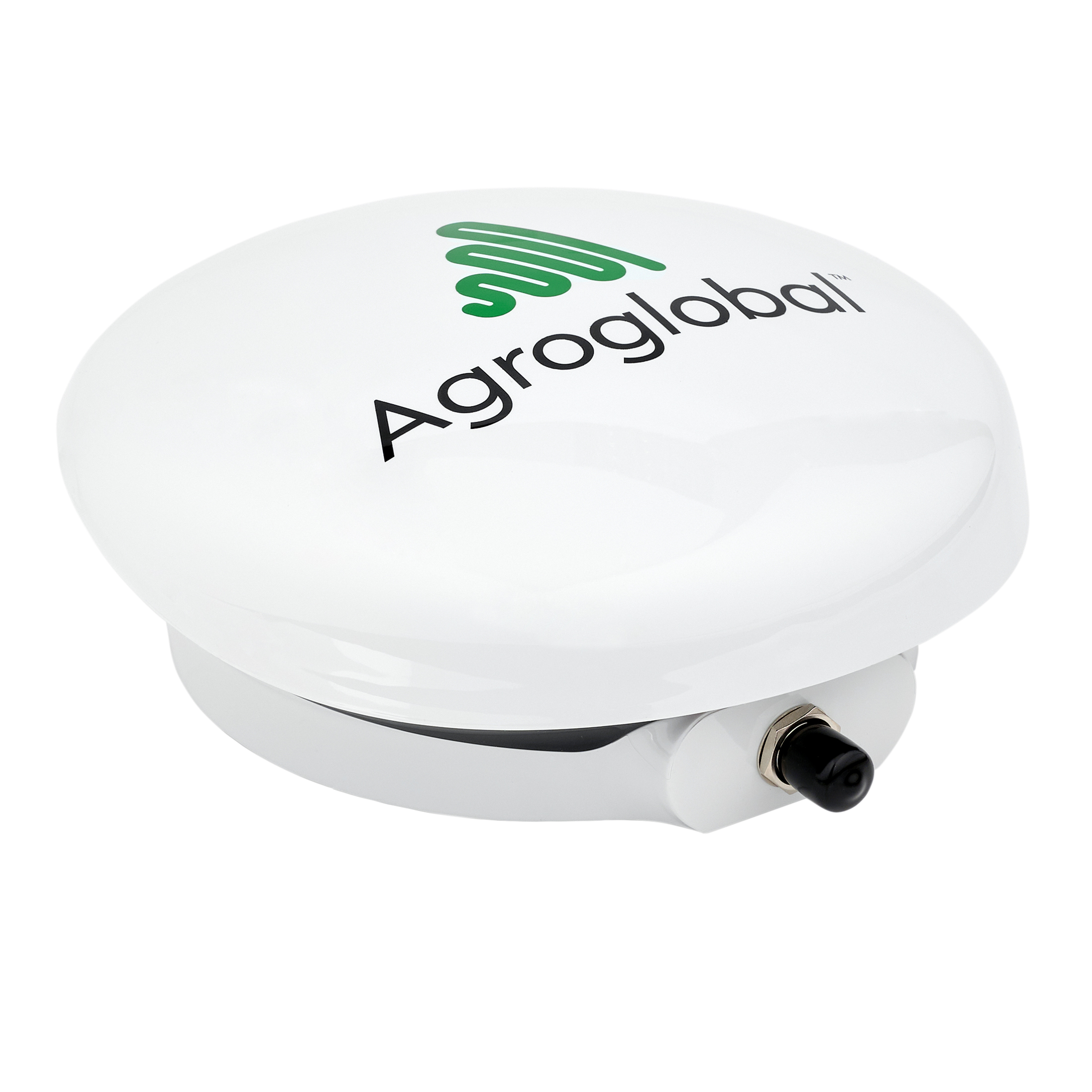

Enhanced antenna GNSS AGN 3.3 - 1 pc
Metal plate for antenna - 1 pc

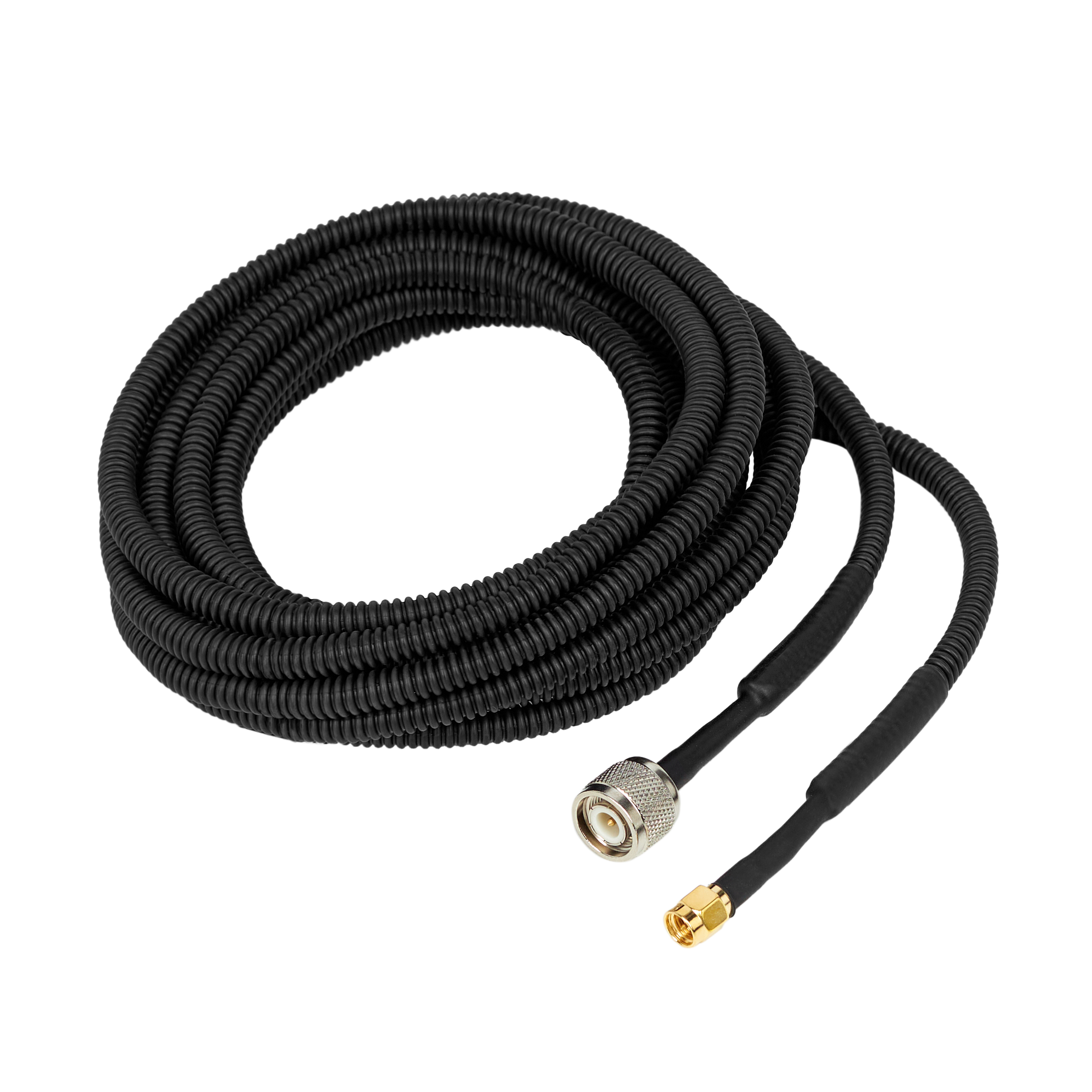

Antenna cable protected 4 m - 1 pc
User's manual

Display

Pass-to-pass accuracy

20-30 cm – receiving correction data EGNOS (SBAS)

Movement patterns

Straight line AB / Perimeter / Free form /
Area measurement / Identical curves
Application inside perimeter

Applied area calculation

Yes

Visualization

Yes

Course deviation indicator

Yes

Displayed data

Speed
Current time
Implement width
Overlaps and gaps
Current pattern

Working modes

Day / Night
Airplane mode
OSM maps

Continue job after brake

Yes

Calibration function

Yes

Export reports

Yes

Rear camera connection (R-cam)

Yes
