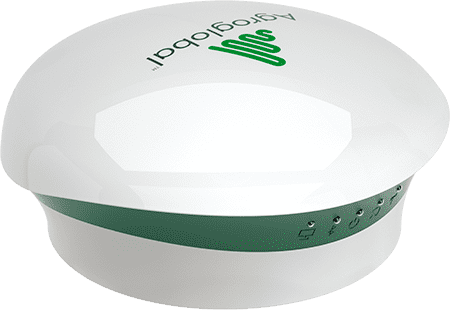

GNSS SMART-ANTENNA AGROGLOBAL AGN-30

A modern dual-frequency receiver of a new generation makes it possible to work both on a free signal and receive RTK corrections to achieve centimeter accuracy. This ensures the necessary quality of signal reception in adverse conditions (near buildings, trees and other obstacles, in hilly areas, etc.), including due to the 9 - axis inertial position sensor, which allows to compensate for terrain irregularities when building a trajectory.

Base station mode

The AGN-30 can be used as a local base station and a rover, thus enabling high-precision operation without the need for monthly subscription fees for RTK operators or in areas where there is no GSM network coverage.

Reliable and easy to install

The robust, reliable body is equipped with 6 neodymium magnets that secure the antenna to the vehicle, and its aerodynamic shape reduces wind loads and prevents precipitation affect.

Receiving signals (antenna)

Default functions

GPS L1C/A L2C, GLO L1OF L2OF,GALE1B/C E5b, BDS B1I B2I, QZSS L1C/A L2C

10 Hz data update

SW update possibility

Data format NMEA0183

Free SBAS correction signals receiving

RTK correction receiving

Inertial navigatrion (without GPS signal) - up to 1 minute
