Enhanced GNSS antenna AGN 25
Description

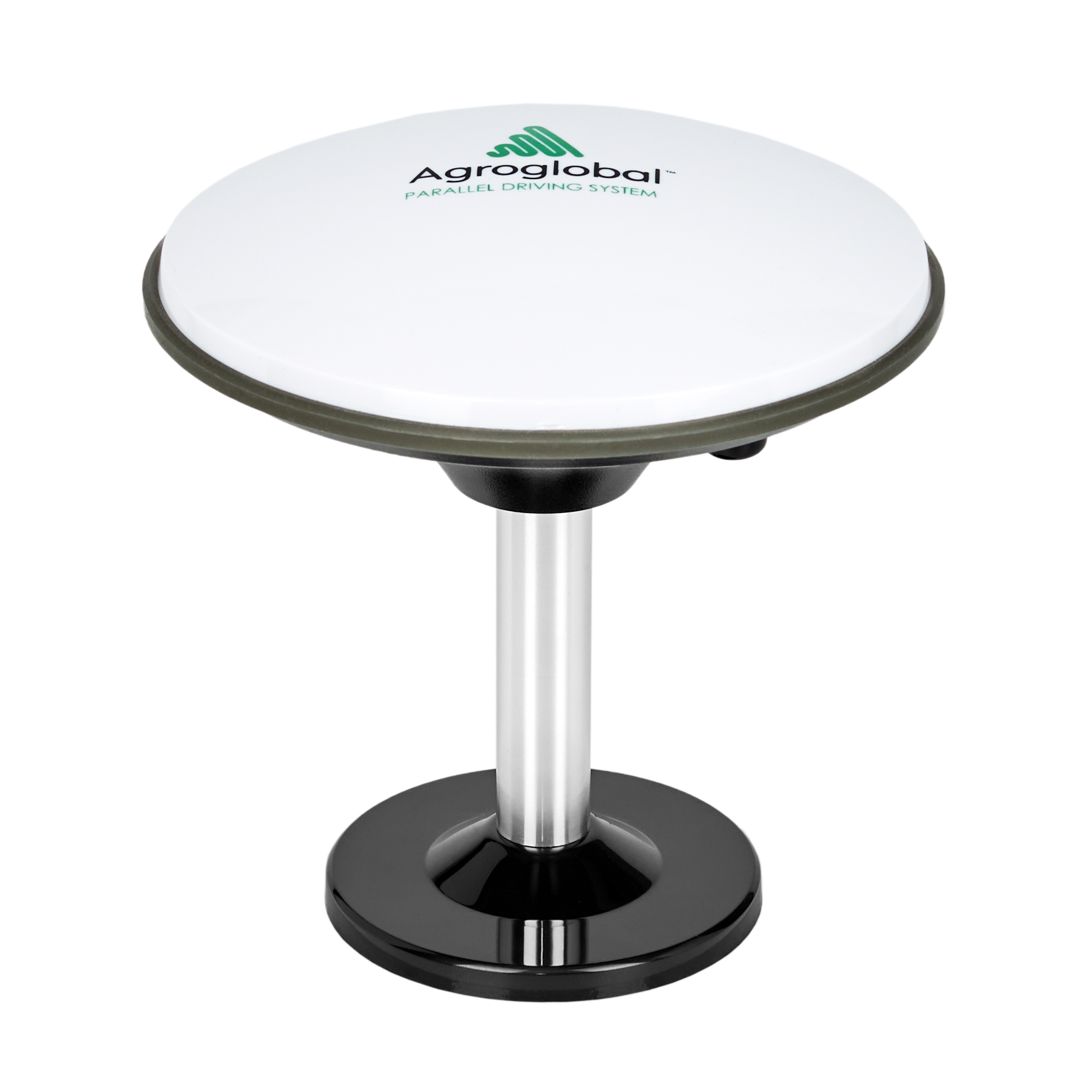

The AGN 25 enhanced dual-frequency GNSS antenna is used in the AGN8000 and AT5/AT5-RTK navigation systems and provides reliable reception of GPS/GLONASS/BEIDOU/GALILEO satellite signals. It is installed on the vehicle using a magnetic basement. For mounting on a plastic surface, a mounting plate is included.
Complete kit
Antenna AGN 25 – 1 pc
Aluminium stud – 1 pc
Magnetic basement – 1 pc
Antenna cable 4 m, TNC-SMA – 1 pc
Specifications
Antenna
GPS L1/L2
GLONASSL1/L2
COMPASB1/B2/B3
GALILEOE5b/E6
PolarizationRHCP
Axial ratio≤3dB
V. S. W. R.≤1.5
Horizontal coverage angle360°
Impendance50 Ω
LNA
Gain40±2 dB
Noise figure≤1.5dB
Passband fluctuation± 1dB
Power supply3 ~ 5,5 VDC
Current consumption≤45mA
V. S. W. R.≤2.0
Mechanical
SocketTNC-K
Body materialABS
Installation typeMagnet
Environmental
Operating temperature-40 ℃ ~ 85 ℃
Relative humidityUp to 95%
ProtectionIP66
Environmentally friendlyRoHS compliant
Functions
Reception of radio signals from satellite navigation systems (GLONASS\GPS\BeiDou\QZSS\GALILEO)
Accessories

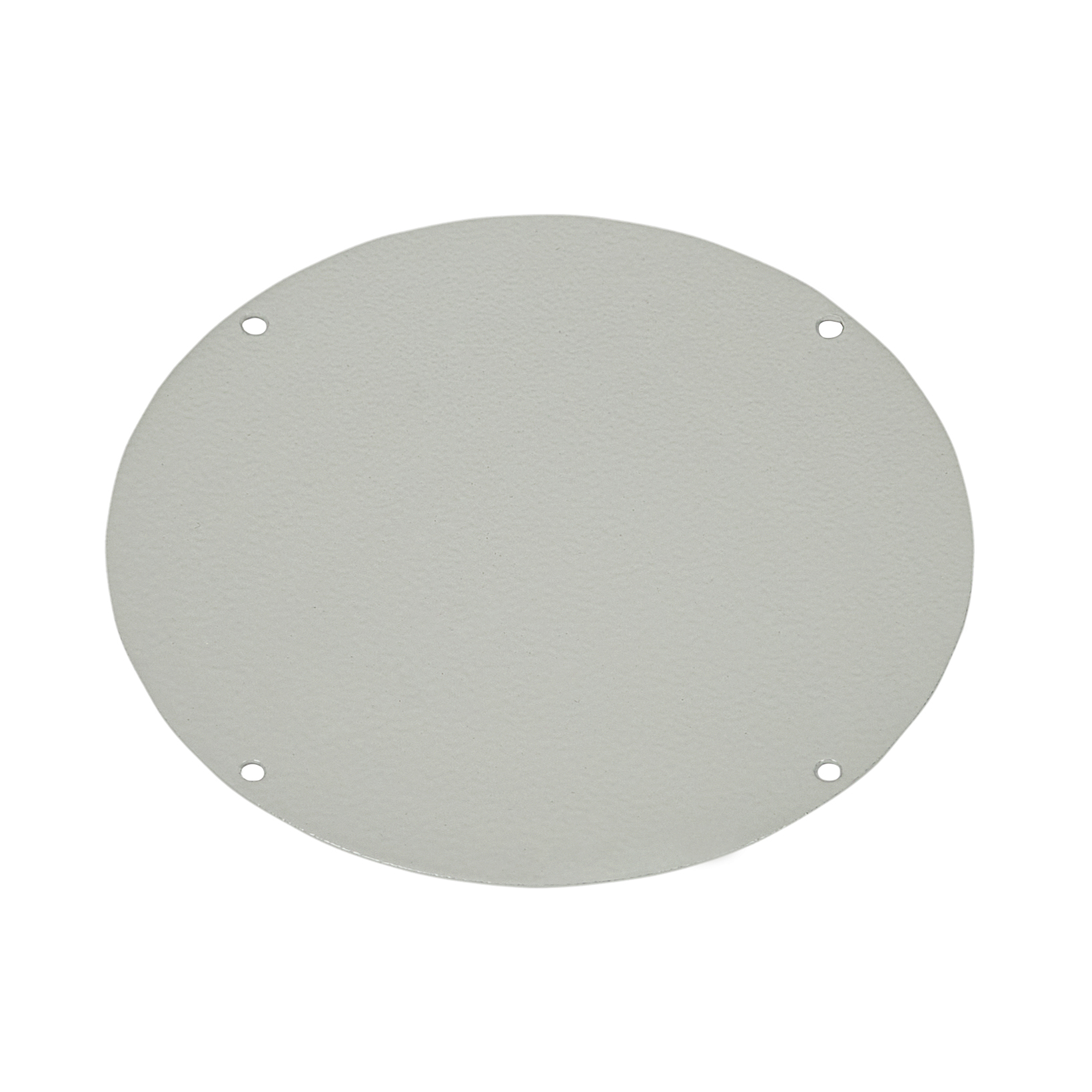

Installation plate for AGN25 antenna
Designed for AGN 25 antenna ( for installation on a plastic surface).

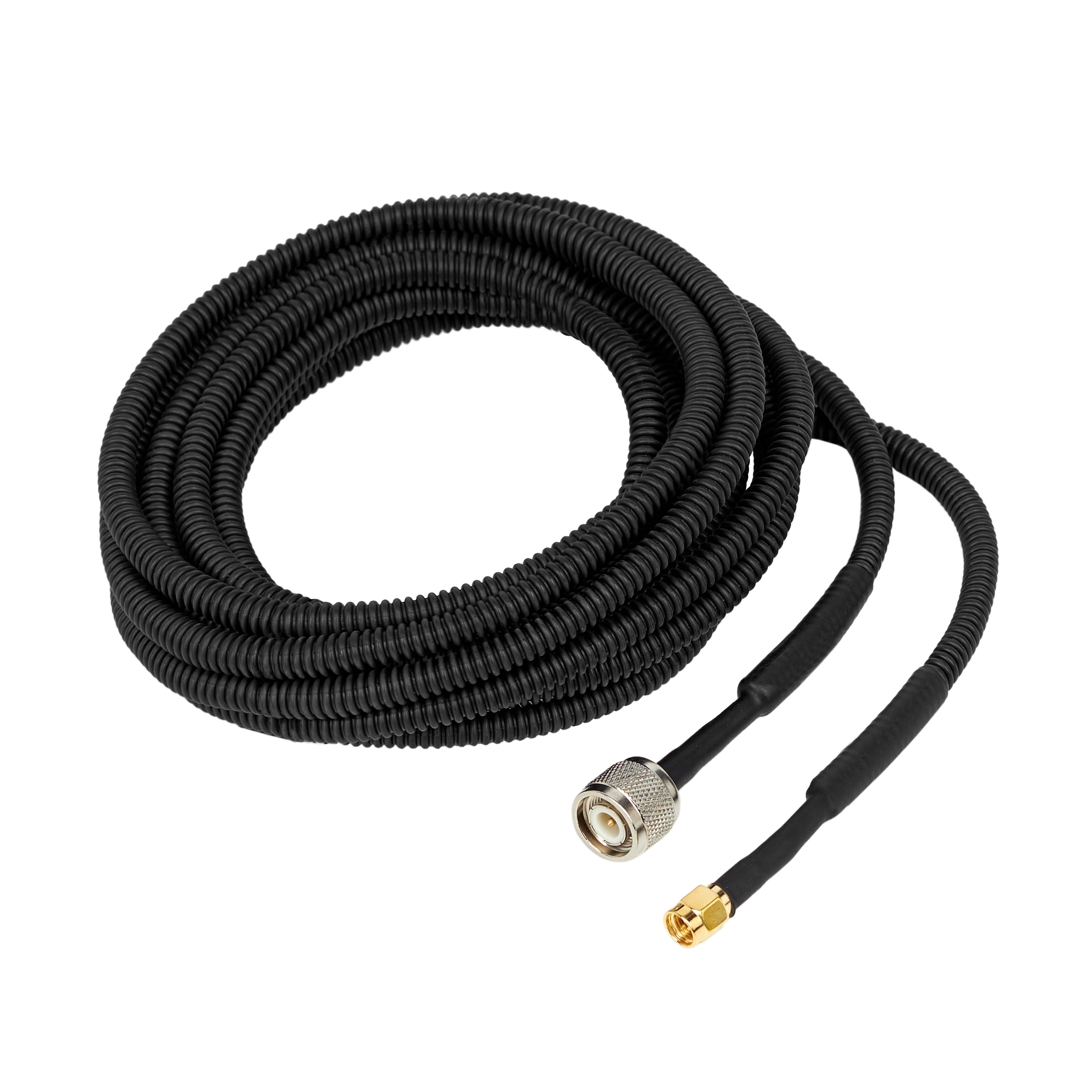

Antenna cable SMA-TNC (4m) protected
Suitable for guidance systems Agroglobal AGN8000 and AGN AT5/AT5-RTK and also for some other brands (CLAAS, TeeJet).
Similar products
GNSS SMART-ANTENNA AGROGLOBAL AGN-30
A modern dual-frequency receiver of a new generation makes it possible to work both on a free signal and receive RTK corrections to achieve centimeter accuracy. This ensures the necessary quality of signal reception in adverse conditions (near buildings, trees and other obstacles, in hilly areas, etc.), including due to the 9 - axis inertial position sensor, which allows to compensate for terrain irregularities when building a trajectory.
GNSS antenna AGN 3.3
The ANG 3.3 reinforced three-frequency GNSS antenna is used in AGN8000 and AT5/AT5-RTK navigation systems and provides reliable reception of GPS/GLONASS/BeiDou satellite signals. It is installed on the vehicle using neodymium magnets located on the bottom of the antenna.
