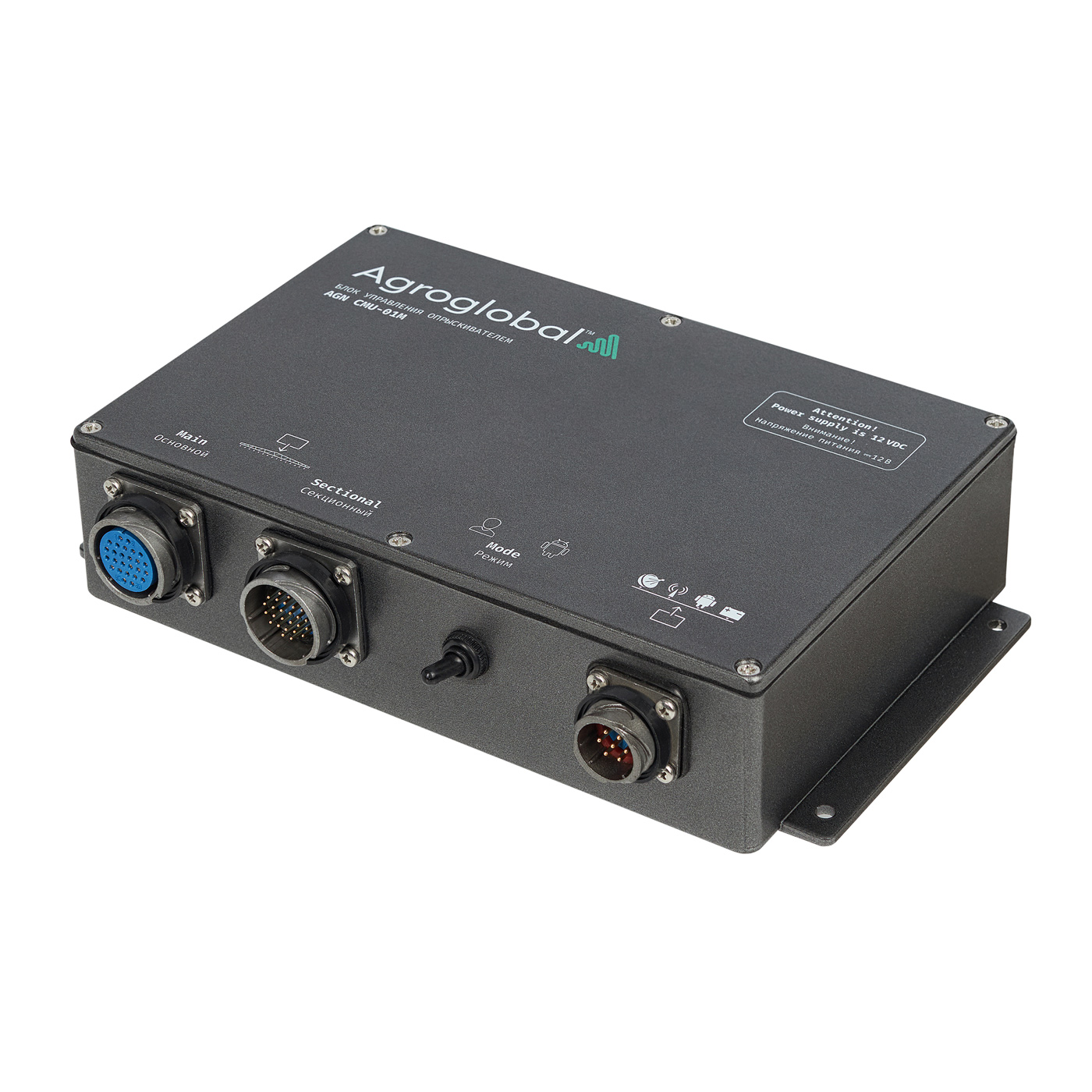

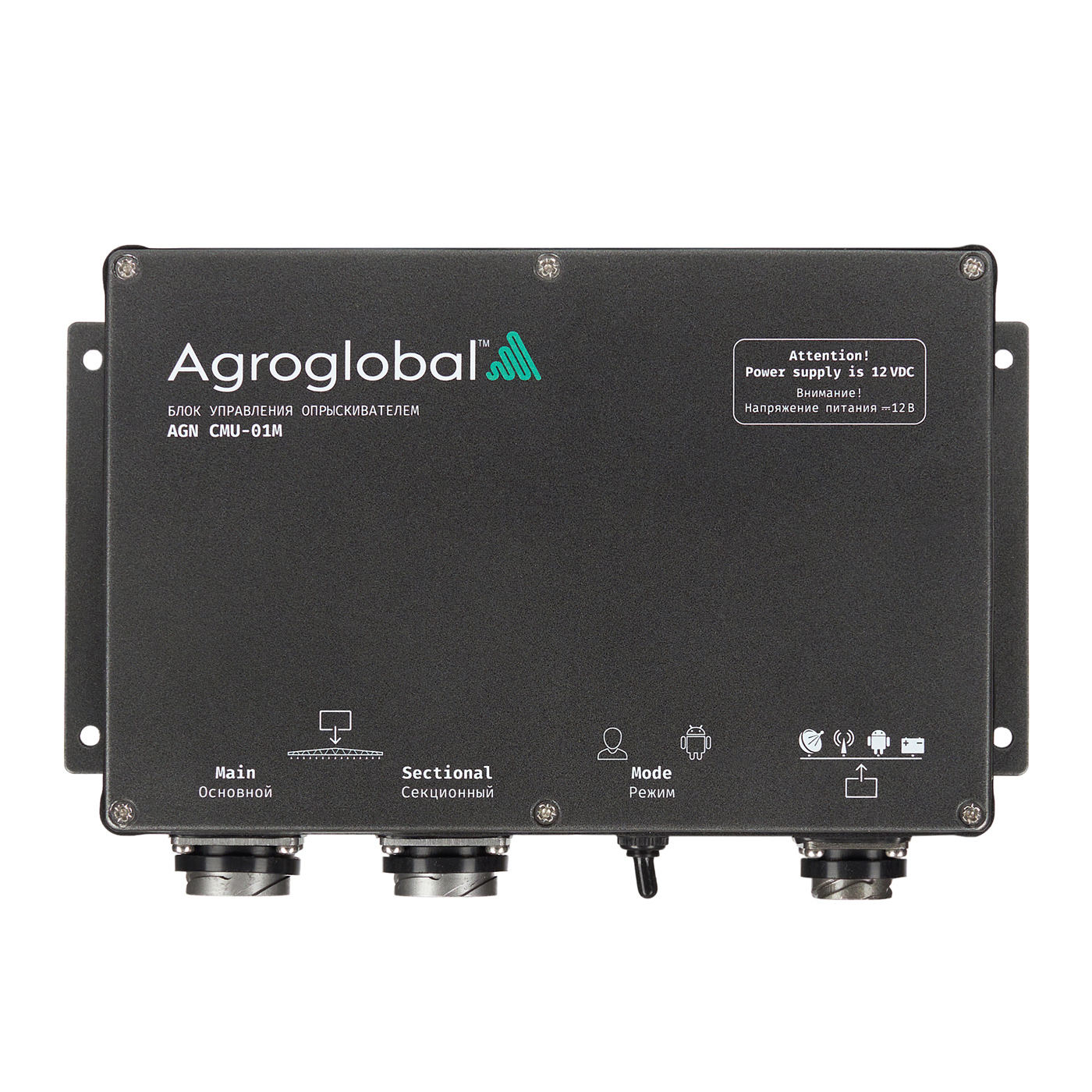

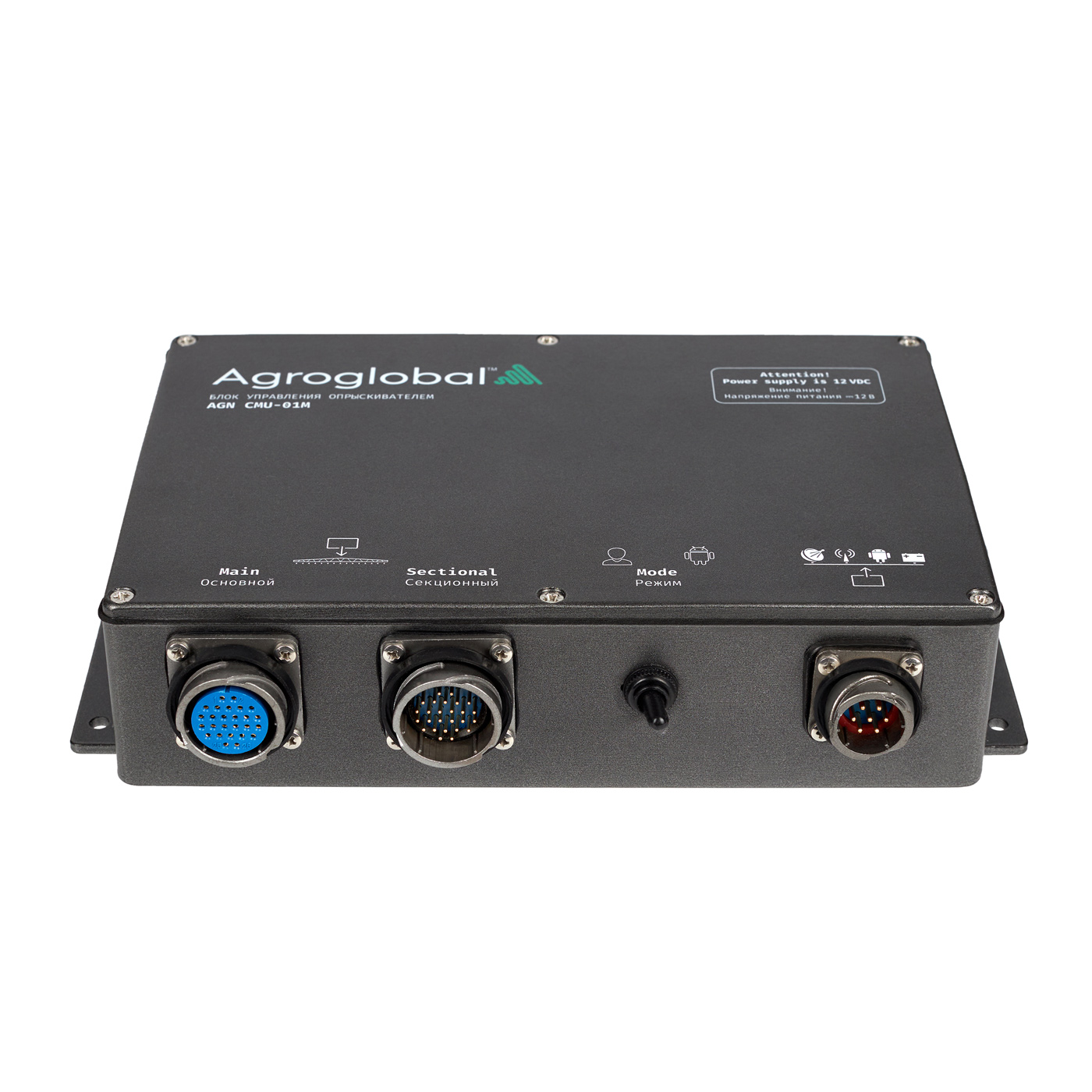

Sprayer control unit AGN CMU-01M

AGN СMU-01M is a component part of the control and monitoring system in the process of applying of liquid and hard chemicals, including fertilizers. It allows to automatize the process of the field operations, thus minimizing human factors significantly. This unit is designed to operate together with GNSS Guidance System AGN AT5/ AGN AT5-RTK.

Complete kit

Sprayer control unit AGN CMU-01M  – 1 pc
Communication and power harness – 1 pc
Cabin harness – 1 pc
Main harness – 1 pc
Section harness – 1 pc
User's manual – 1 pc

Device purpose

Main valve control
Sectional valve control in automatic and/or manual modes
(up to 9 sections simultaneously)
Automatic dose rate control
Nozzles highlight control
Automatic separate cutoff up to 9 hydraulic sections and 8
nozzle control valves in case of entering the applied area
